Product Overview:

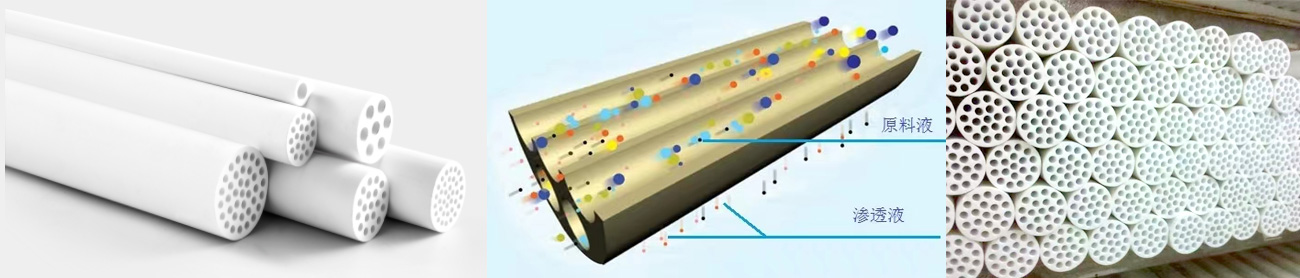

Inorganic   ceramic membrane is alumina, titanium oxide, zirconium oxide and other   inorganic material through a high temperature sintering of a porous   structure of the ceramic filter material, comprising a porous support   layer, the transition layer and the microporous membrane layer   three-layer structure, the asymmetrical distribution, filtration   precision covers microfiltration, ultrafiltration, nano filtration. A   tubular ceramic membrane the use of“cross-flow filtration”realized in   the form of a fluid separation process, namely: raw material liquid in   the membrane of the inner tube high-speed flow in a pressure-driven   under-containing small molecules permeate along the membrane layer   vertically outward direction through the membrane, containing   macromolecular components of the concentrated liquid film Trapped, in   order to achieve a fluid separated, purified, concentrated in purpose.
Product features:

Good chemical stability, acid and alkali resistance, oxidation resistance, resistance to organic solvents, etc.;

High temperature resistance, can be high temperature disinfection and sterilization;

Easy to clean, long service life;

Narrow pore size distribution, separation of high precision;

No dissolution thereof, suitable for food and pharmaceutical process separation;

the complete equipment has the advantages of small occupied area, high automation level and low labor cost;

has low requirement on water inlet or feed, and can be applied to some extreme environments;

Ceramic membrane system process high degree of integration, to achieve full automatic control, capable of continuous feeding, continuous residue and filtrate.

Compared with the conventional technique, the Inorganic ceramic membrane separation technology can improve the product yield and purity, shorten the production cycle, increase economic efficiency, energy conservation, etc.

Specifications and models:

Sort by shape
Outer diameter mm	25	25	30	30	30
Number of channels	19	37	19	37	61
Channel diameter mm	3.3	2.0	4.0	2.6	2.0
Length of membrane tube mm	1178	1178	1200	1200	1200
Membrane area m2	0.231	0.274	0.286	0.362	0.460
Sort by filter precision
Microfiltration	800nm	Support material		Al2 O3
	200nm	Applicable pH range		0-14
	100nm	Failure pressure		≥6MPa
Ultrafiltration	50nm	Operating temperature		≤350℃
	20nm	Film material		Microfiltration: Al2O3 Ultrafiltration: Al2O3, ZrO2, TiO2
	5nm	Organic solvent		Insensitivity
